Can membrane keypads be customized?

Membrane switches offer a high degree of customization. Size, shape, printing, surfaces, lighting, and connection options canbe freely designed according to customer requirements. Transparent windows for displays, integrated LEDs, or embossed key surfaces are also possible. Thisresults in an input system that fits perfectly into the design and functionality of your product. Design:The top layer of the membrane switch, the front foil, is printed using screen printing. A wide color palette is available according to RAL classic,Pantone, or HKS. Special colors according to the customer’s corporate identity, a disappearing effect, or a metallic look with reflection arealso possible. Mechanics:The size and shape of the membrane switch are fully adapted to the shape of the device. Key sizes and positions, installation andmounting options, and even tolerance specifications can be individually coordinated. Electronics:In addition to snap discs for the keys, LEDs can also be integrated for custom lighting. The switching scheme and theconnection (cable, connector, number of poles) of the membrane switch can also be customized. An integrated electronic assembly on acircuit board is also possible. Haptics:In addition to different surface textures of the front foil, additional embossing (surfaces, borders, symbols) or GT-Dome can improveuser-friendliness.

How robust and durable are membrane keypads?

Membrane switches consist of several durable polyester layers. Depending on the design and material, they achieve severalmillion actuation cycles per key. The closed surface reliably protects against mechanical wear, dust, and dirt, andensures constant functionality over many years.

Are membrane keyboards resistant to water, dust or chemicals?

Yes, membrane switches are particularly resistant to environmental influences due to their closed surface. Depending on thedesign, they can be manufactured to protection classes such as IP65 or higher, making them resistant to dust and moisture. Thepolyester films used are also resistant to many cleaning or disinfecting agents. This is why membrane switches are also suitableIdeal for hygienic environments, such as food or medical technology.

Are membrane keypads also suitable for outdoor use?

Yes, membrane switches can be designed to function reliably outdoors as well. UV-resistantand temperature-resistant materials are used for this. In addition, protection classes and temperature suitability can be individually adapted, so thatthe keyboards remain reliably functional at operating temperatures from -40°C to 70°C. Sufficient edge sealing, specialAdhesives or additional seals make a membrane switch ready for outdoor use.

What is GT technology?

GT technology is a process developed by Hoffmann + Krippner to produce a dome-shaped, high-gloss plastic material with a high gloss finish.to be applied to a foil surface. GT stands for casting technology. GT-Dome is mainly applied to key surfaces,to improve tactility and enable optimal finger guidance (for blind operation). The plastic compound is extremelyresistant to mechanical influences. Pressure marks from hard objects can “heal” without leaving residue.

What makes Hoffmann + Krippner special as a membrane switch manufacturer?

Hoffmann + Krippner has been developing and producing custom membrane switches “Made in Germany” for decades. Customers benefitfrom a unique combination of years of experience, state-of-the-art manufacturing technology, and individual consulting. Every keyboardis precisely tailored to the requirements of the application – from design and feel to material selection and special protection andhygiene functions. Thanks to our in-house development and production expertise, we can ensure the highest quality, short distances, andguarantee reliable series production.

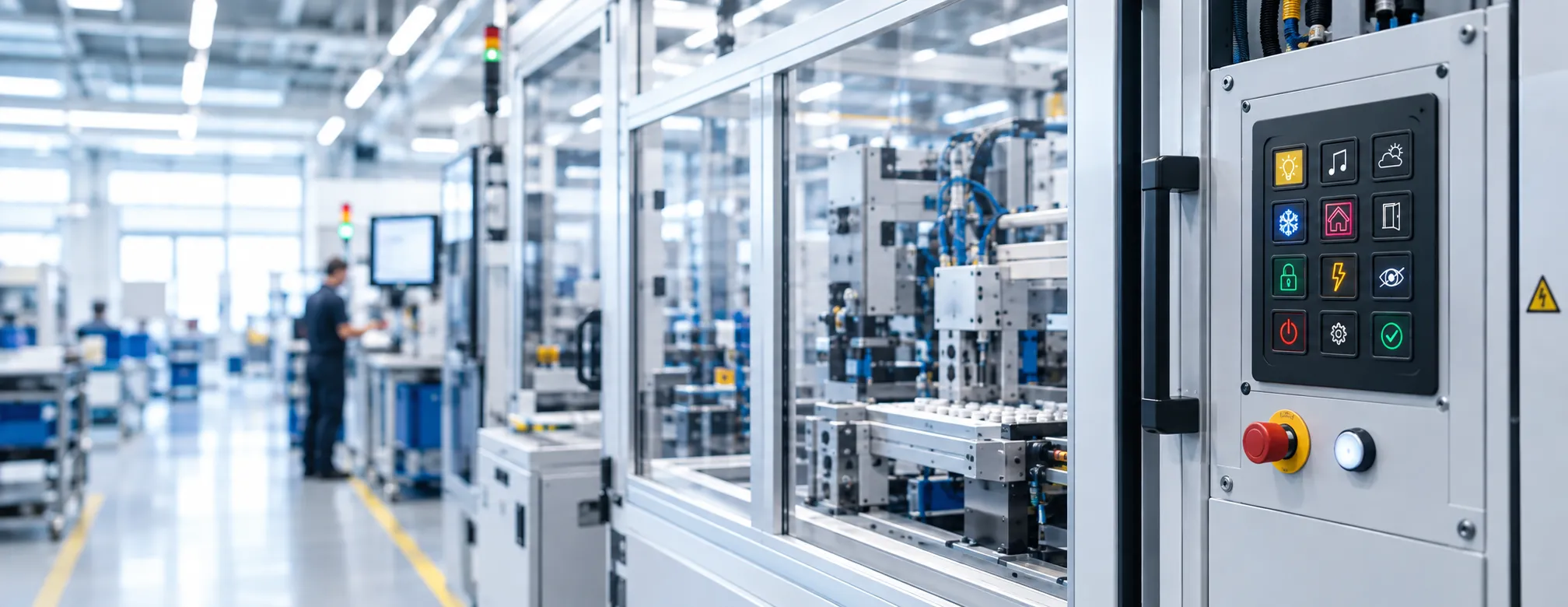

AI-generated Illustration

Display Keys

More function, fewer keys

Display keys combine the tactile feel of physical keys with the flexibility of a display. This allows functions, icons, and labels to be dynamically adapted to the current operating situation. While classic membrane switches rely on fixed key functions, display keys create a modern operating concept with multiple assignments and context-dependent use.

Hoffmann + Krippner has been an experienced manufacturer of custom input systems for a wide range of applications for over 50 years. At our production site in Buchen in the Odenwald, we develop and manufacture high-quality, custom-made display keys.

Send request

One key, many functions Sleek design - one key for multiple functions
Dynamically adaptable Functions and labels can be changed at any time
Haptic feedback Reliable, tactile feedback up to 4N
High-resolution display Brilliant image thanks to 128x128px TFT display
Individual keys or combined Can also be combined with membrane switches
Durable and robust Up to 1 million actuations and IP65 protected
Individual interfaces Interfaces such as I2C, SPI, USB, or RS232 possible

Your display keys. Your scope of functionality.

From a single display key to an integrated and combined HMI solution.
You determine which functions and components your application needs.
We combine the right technologies and, if desired, handle the integration as well.

1. The basis of your display keys

Printed circuit board
With fitted contact spring for noticeable key feedback. Back can be individually equipped.
Design foil
Closed foil surface with transparent window for a clear view of the display.
TFT display
Available from 0.85 inches, with or without cover glass for added stability. Other display types available on request.
Interfaces
Can be controlled via various interfaces such as I2C, SPI, USB, or RS232.

2. Extend your display keys

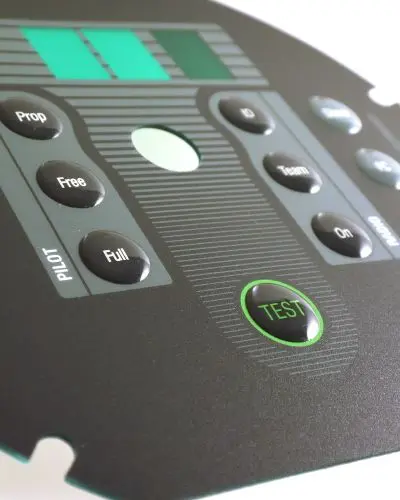

Embossing

Display keys with embossing provide optimal finger guidance and even enable blind operation. The raised areas can be individually designed and realized up to 0.7 mm high as surface, border, or lens embossing.

Membrane switch

Display keys can be combined with a classic membrane switch. This allows static key functions to be supplemented with variably adaptable content.

Touchscreen + display

Display keys combined with a touchscreen and/or display offer users haptic key operation with dynamic content, combined with modern touch functionality.

Housing + carrier

For improved stability, display keys can be mounted on a custom carrier plate or housing. This protects electronic components and simplifies installation in the customer’s application.

Seals + Protection

Precisely dispensed seals protect display keys from water and dirt. UV-stabilized polyester films are suitable for outdoor use.

3. Complete solution tailored to your requirements

You receive a 360° worry-free package: one solution, one point of contact!
We take care of the time-consuming coordination of many individual components and services for you.
You define the scope!

Operating unit

Buttons, touch, printed electronics, or a combination of multiple technologies.

Housing

Standard housing or a custom housing solution made of plastic or metal

Electronics

Custom-populated PCBs and LED technology for button backlighting.

Software

Intelligent user guidance or protocols for smooth data transmission

Connectivity

Custom interfaces and IoT connectivity for value-added HMIs

Design + Development

Mechanics

Mechanical design defines the structure, materials, and ergonomics of the input system. From membrane or glass thickness to integration into housings, a solution is created that can be optimally integrated into the customer application.

Electronics

The electronics of an input system include trace layouts, PCB routing optimization, sensors, and lighting. Custom interfaces and the integration of the signal processing electronics ensure smooth communication with the customer application.

Software

The software is developed individually using compiler, debug, and programming tools. It precisely evaluates the input signals, controls functions, and enables communication with the customer application.

Quality + Sustainability

ISO 9001:2015

We develop and manufacture all input systems in accordance with the ISO 9001:2015 quality management standard

ISO 13485:2016

We develop and manufacture control units for medical devices in accordance with the ISO 13485:2016 quality management standard

ISO 14001:2015

We apply an environmental management system in accordance with ISO 14001:2015 for the development and manufacture of our products.

Typical applications for display keys

Medical technology:

Hygienic user interface with tactile feedback for secure input

Mechanical engineering:

Many functions arranged clearly for the machine operator

Mobility:

Modern user interface with high-resolution display and haptic feedback

Building automation:

Intuitive access controls with hierarchical menu, even for outdoor use

Technical data for display keys

All technical data may vary depending on the customer-specific design.

Display technology

High-resolution TFT display 128x128px (other display types available on request)

Display size

0.85 inches

Key size

at least 18×18 mm

Key geometry

round, angular, other shapes possible

Service life

At least 1 million switching cycles

Interfaces

I2C, SPI, USB, or RS232; others available on request

Protection rating

from IP 65

Overall construction

6 mm

Configuration

available on request

Individual solutions from Hoffmann + Krippner

Every project requires a precisely coordinated solution. We develop control units and sensor foils that are optimally suited to your application in terms of function, design and robustness – from technology selection to series production.

All services at a glance
Blick – download PDF here!

Display key or capacitive key – which
technology suits my project?

Display keys with clear tactile feedback offer a sleek design and the option to dynamically adapt functions and labels.

Capacitive keys impress with modern, wear-free user interfaces, even for demanding applications.

Start your project!

New development or redesign?
We are your partner from prototype to series production.
